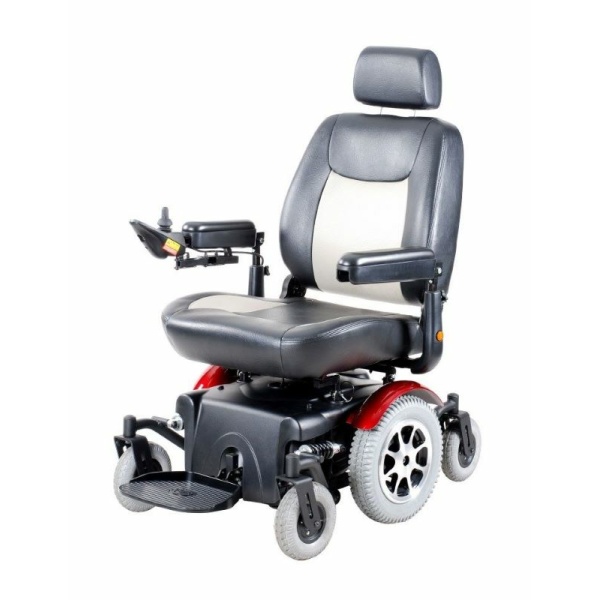

Merits Vision Ultra Mid-Wheel Power

The Merits Vision Ultra power wheelchair is one of the best on the market with its tension-adjustable front and rear suspension, which allows you to roam freely.

The Merits Vision Ultra power wheelchair includes a power tilt feature that allows you to vary
The angle of your seat is between 0° – 55°.

It also features a tension-adjustable front and rear suspension for shock absorption and height-adjustable armrests.

You can adjust the seat width and depth from 16 “to 22″ in 1″ increments, creating comfort.

Its up-to-20km drive range will allow a full day of average use without worrying about your next charge.
Because of how customizable this power wheelchair is, it has become an industry favourite.

Built to navigate everyday obstacles
14″ Knobby tires for optimum weight distribution provide superior traction.
The patented articulation mechanism allows the front wheels to climb up the obstacles.
Plus, the high traction of 14” tyres makes the vehicle quickly drive over rough terrain.
Dual-in-line motors for enhanced efficiency, torque, range and performance.

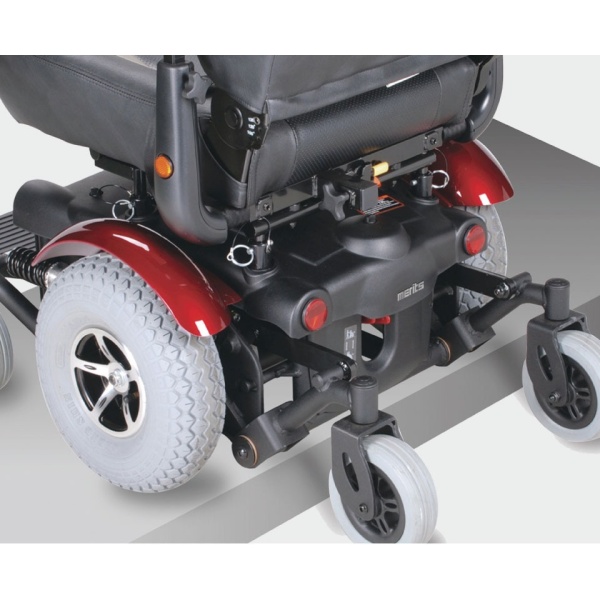

Full front and rear suspension design offers a comfortable ride.
Mid-wheel drive design provides outstanding manoeuvrability in tight, compact spaces.
Built to navigate everyday obstacles.
Maximum stability with 4-seat post design.
Swing-back joystick mount is standard.
Heavy-duty Group 3 model.
Optional power seat lifter.

Dimensions(cm/in):
Seat width 51cm/20"
Seat depth 46c./18”
Seat height 56-58 cm / 22 "-23"
Backrest height 51 cm / 20."
Armrest height
Footrest extension length 43-48 cm /17 "-19"
Overall length 101 cm/40"
Overall width 66 cm / 23"
Overall height 127 cm / 50"

Features:
Driving Range 7.5
Max Speed 7.2 km/h, 4.5 mph
Battery Type 12V/ 22NF x 2pcs
Motor DC 24V , 200W(Rating) / 575W(Max)
Max Climbing Angle 10°
Turning Radius 53 cm / 21"
Ground Clearance 8 cm / 5"
Controller PG nVR2-50A
Charger 5A off-board
Weight Capacity 205 kg / 450 lb
Total Weight 114 kg / 251 lb
Front-wheel 8" x 2"PU tyre
Drive Wheel 14"
Rear wheel 8" PU tyre
